2-in-1 hold-down and in-line track clamp for jigs, fixtures, and assembly.

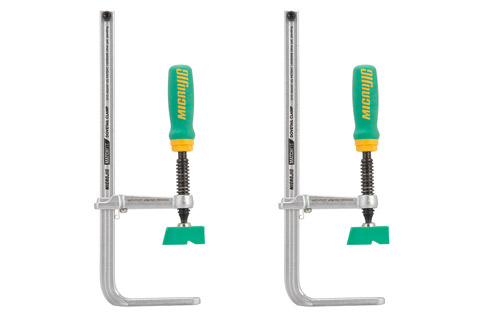

MATCHFIT Dovetail Clamp AP (Online Exclusive)
Anti-Pivot Technology
Create your own clamp tracks anywhere you can route a dovetail groove. Enjoy the same, limitless functionality as the standard Dovetail Clamps with three added benefits:
- Anti-Pivot technology keeps the clamp arm in place to make repetitive tasks faster.
- Included X-PAD™ applies force in two directions and helps you secure material with fewer clamps.
- Increased clamping range (to 8.5").
The idea for the Dovetail Clamp AP came when Founder and Inventor, Henry Wang, was using the first generation of Dovetail Clamps on the drill press for a process that required constant re-adjustment. The clamp arm would pivot and drop while swapping between workpieces, adding time and frustration to the project. The Anti-pivot coil spring solved the problem and proved to make repetitive processes faster and easier.
Work faster with a clamp arm that won't drop.
- The Anti-Pivot Coil Spring prevents the clamp arm from pivoting and dropping when switching workpieces in repetitive processes. Save time and work faster without having to reset your clamp height for every part.
- Use any standard 1/2"–14º dovetail router bit to route your own tracks virtually anywhere. Clamp without limits, and never buy expensive T-track again.
Clamp in two directions with a single clamp.
- The included X-PAD™ simultaneously applies hold-down and in-line pressure as the clamp tightens. The combined forces keep your workpieces flat and eliminate the need for two or more different clamps.
- The V-groove profile gives you two points of contact to clamp round or oblong stock with ease.
Build jigs like never before.
The MATCHFIT dovetail track system allows you to create your own tracks with just a router bit. It’s like an infinite supply of T-track without the cost of T-track.
Create your own clamp tracks anywhere you can route.
Simply route a groove anywhere you need using a 1/2”–14º dovetail router bit.
Dozens of jigs in one.
Use the included Dovetail Track Hardware to create a variety of jigs that move freely, and tighten down anywhere you can route a groove.
Secure material with ZERO interference.
The Dovetail Clamp AP slides below the surface, so you can secure material without the clamp getting in the way.
Clamp round stock with ease.
Turn the X-PAD™ 90º to clamp round and oblong-profile stock with a single clamp.
Use it around your whole shop.
Features.
MATCHFIT Dovetail Clamp AP (Online Exclusive)
***Limited Time only***
Get FREE 1" Dovetail Hardware when you buy a Dovetail Clamp AP
What's Included:
- (1) Dovetail Track Clamp™ AP
- (1) X-PAD™ Attachment

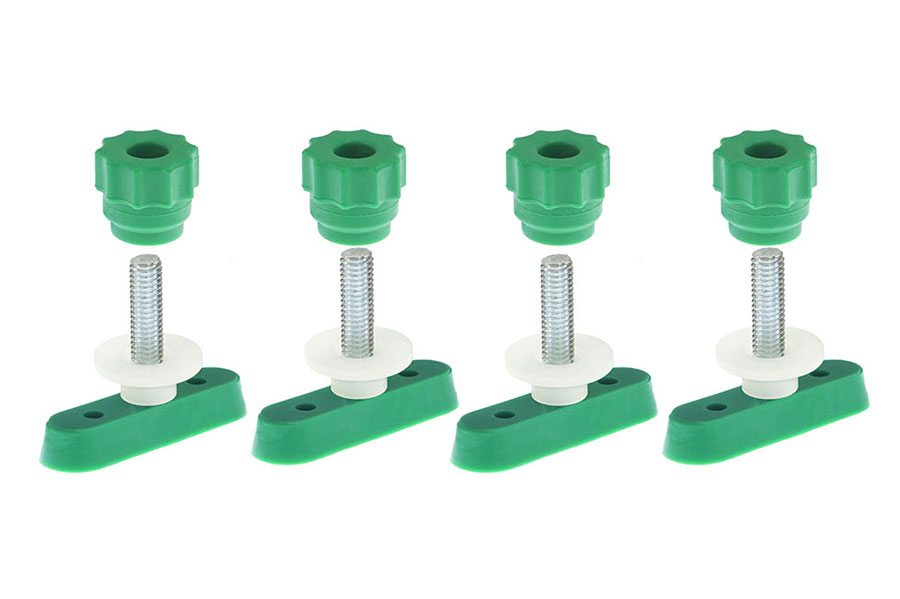

- (4) 1" Dovetail Track Screws
or buy separately
***NEW Product Launch***
***Limited Time only***
MATCHFIT
What's Included:
- (1) Dovetail Track Clamp™ AP
- (1) X-PAD™ Attachment
- (4) 1" Dovetail Track Screws
100% Satisfaction Guaranteed
- Priority Mail Express: No delays.
- Priority Mail: 1-2 day delay. No delays for local delivery.
- First-Class Package Service: 1-2 day delay.
***Limited Time only***
Get FREE 1" Dovetail Hardware when you buy a Dovetail Clamp AP
What's Included:
- (1) Dovetail Track Clamp™ AP
- (1) X-PAD™ Attachment
- (4) 1" Dovetail Track Screws
Due to the high volume of recent orders, please allow extended shipping times.
MATCHFIT Dovetail Router Bit (1/2"-14°)
MATCHFIT Dovetail Router Bit (1/2"-14°)
ZEROPLAY 360 Sled Kit
ZEROPLAY 360 Sled Kit
MATCHFIT Dovetail Clamp Pro
MATCHFIT Dovetail Clamp Pro
MATCHFIT Dovetail Hardware Variety Pack
MATCHFIT Dovetail Hardware Variety Pack
What people are saying.
Just Works!
Great for those tricky angles
Best clamp ever!
Love these clamps
The new must-have clamp for woodworkers.
Got questions?
How are these clamps different from other F-style clamps?
They’re track clamps. The head of the MATCHFIT Dovetail Clamps are forged into a dovetail shape, compatible with any standard ½”–14º dovetail router bit. It moves through the track created by a router bit instead of an expensive metal t-track.
Can’t I just do the same thing with dog holes?
Not really. Dog holes only allow clamps to go through the material with the head sticking out of the bottom. Dog holes confine clamps to fixed locations, which aren’t always where you need them. Dovetail Clamps can be positioned anywhere in a dovetail track, inside the material and out of the way.
Do I need the MATCHFIT Dovetail Router Bit in order to use Dovetail Clamps and Dovetail Hardware?

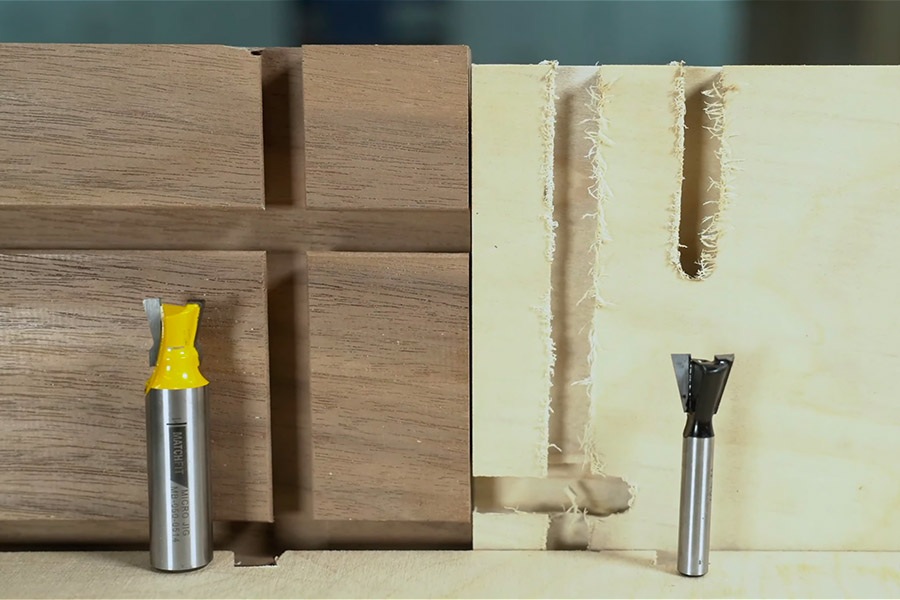

Only if you value your time. Standard dovetail router bits cut to a sharp point at the top of the groove, which requires a decent amount of sanding after the track is routed. Our router bit incorporates a 1/16” roundover to automatically smooth out the top of the track in a single pass. Less time sanding means more time building.
Why dovetail tracks as opposed to T-slot?
When tightening anything inside of a t-slot, the pressure is applied perpendicular to the material surface, which may weaken the integrity of the track. If a t-slot is cut into plywood, all of the force is concentrated on the small flange at the bottom, causing the plywood to delaminate. With a dovetail profile, the clamping force is distributed evenly along the entire wall of the track for an overall stronger hold.
Will MATCHFIT Dovetail Clamps and Dovetail Hardware fit into my Festool track?
The clamps will not, the hardware will, but that’s kind of missing the point. The MATCHFIT system was designed to be compatible with a standard router bit profile, so that users wouldn’t actually need metal tracks. However, some users have been known to file or grind about .005” off of the wide part of the clamp’s elbow and use them in their Festool track. Our advice is to use Festool clamps with Festool tracks, and use Dovetail Clamps for everything else.
Specifications.
Models
Parts
- (1) Dovetail Track Clamp™ AP
- (1) X-PAD™ Attachment
- (4) 1" Dovetail Track Screws
Parts
- (2) Dovetail Clamps
Parts
- (2) Dovetail Clamps
- Dovetail Router Bit (1/2" Shank)
- Setup Gauge
- Dovetail Hardware Variety (6-Pack)
Any standard 14°-1/2" Dovetail Router Bit
Any standard 14°-1/2" Dovetail Router Bit
Any standard 14°-1/2" Dovetail Router Bit
DVC-850AP
DVC-538K2
DVC-1177K2
Designed in the USA
Made in Taiwan
Designed in the USA
Made in Taiwan
Designed in the USA
Made in Taiwan
10,099,398
D846365
10,099,398
D846365
