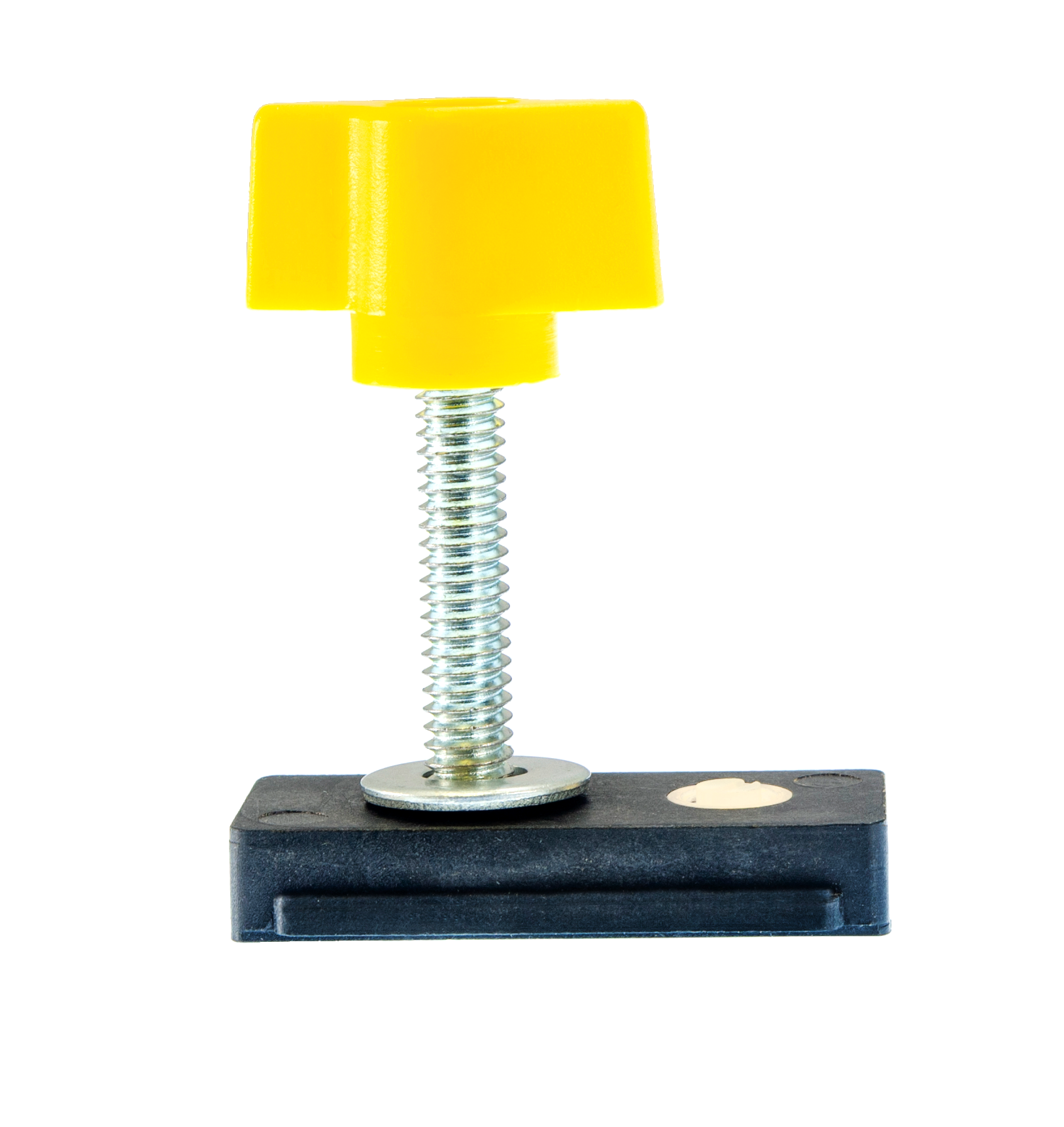

ZEROPLAY Miter Stop
LET ME STOP YOU RIGHT THERE
Strong and reliable anchors.
ZEROPLAY Miter Stops are designed to lock into a 3/4” x 3/8” miter slot. The 1/4-20 threaded insert allows you to attach a variety of jigs like hold-downs and feather boards. Use with ZEROPLAY Miter Bars to create repeatable stops for blind dados and slotting.
The defining feature and flaw of aftermarket miter bars are one in the same - set screws. Frustrated with the difficulty of fitting miter bars with set screws, Founder and inventor, Henry Wang,set out to change it. He conceived a method of adjustment based on opposing wedges, that adjusted the entire bar evenly in a single motion. With its One-Touch Calibration and top-down installation, the age-old struggles of sled making had finally been solved.
How it works.
Stops for your miter slots.
- Fits any standard 3/4” x 3/8” T-Track Miter Slots.
- Top-down installation lets you keep your sled square to the fence while you secure the ZEROPLAY Miter Bar for a hassle-free setup and precision cuts.
Add a variety of accessories in a snap.
ZEROPLAY Miter Stop locks into the miter slot with the included ¼-20 nylon set screw. Attach accessories and jigs using the provided 1/4-20 carriage bolt.
Calibrate with a single touch.
ZEROPLAY Miter Stop locks into the miter slot with the included ¼-20 nylon set screw.
Attach accessories and jigs using the provided 1/4-20 carriage bolt.
Use it around your whole shop.
Features.
ZEROPLAY Miter Stop
ZEROPLAY Miter Stop
What people are saying.
Accessories and more.
Got questions?
Does the ZEROPLAY Miter Bar work with Shopsmith® miter tracks?
It depends. The miter slots vary in width from model to model. Measure your miter slot to ensure that it is at least .730" wide"
Will the ZEROPLAY work on my miter track?
The ZEROPLAY Miter Bar System works with both ‘T’ & ‘U’ shaped miter slots. The adjustable range is between 0.73″ – 0.785″ this means the width of the miter slot in which the Miter Bar will lay must be between these ranges. In detail, the very bottom part of a ‘T’ shaped miter slot must be within this specific range as well as a ‘U’ slot. Secondly, the thickness of the ZEROPLAY miter bar is 5/16″. Specifically, this means that the miter slot must be a minimum of 5/16” in depth. Moreover, considering a ‘T’ shape miter slot the area below the hinges must be 5/16″ or greater in depth, and considering a ‘U’ shaped miter slot the depth must be 5/16″ or greater. The ZEROPLAY Stop only works with ‘T’ shaped miter slots. All the same physical parameters apply to this product as the Miter Bar system; except of course only working on ‘T’ shaped miter slots.
Do the ZEROPLAY 360 Sled Kit or single miter bar kit include the ZEROPLAY Miter Stop?
No. The Miter Stop is included with the double miter bar pack, and is also available individually.
Does the ZEROPLAY 360 Sled Kit include the sled?
No. The kit is designed to allow users to build their own sled, to their own specifications. Don’t worry, you can do it! We provide detailed, easy-to-follow instructions for building the sled of your dreams. Believe in yourself.
I’m having trouble adjusting my miter bars - either too tight or too loose. Any tips?
If your miter bar fits well but becomes too tight when installed on a sled, you may have tightened the panhead screws too much. Overtightening those screws can cause the bars to compress and expand outward. Try putting a single strip of paper on the inside of one of the miter slots when adjusting the miter bars’ width. This should offset the compression that occurs during installation.
My table saw has tabs at the top of the miter slot. Will ZEROPLAY Miter Bars work on my saw?
No. The tabs will get in the way. Refer to the compatibility diagram here:
Will ZEROPLAY Miter Bars fill my saw?
ZEROPLAY Miter Bars will fit ANY standard (3/4” x 3/8”) T-Track miter slot that measures between 0.73" and 0.79" wide and at least 5/16" deep.
Compatible miter tracks include but not exclusive to ShopSmith, SawStop, Bosch 4100, Delta Unisaw, Powermatic, Rigid, Dewalt, and General 350 Tracks.
*Not compatible with table saws with 'Tabs' cast into the top of the miter slot or 5/8" miter slots i.e. Ryobi or Craftsman.
Specifications.
Parts
- Miter Stop
Table Saw
ZEROPLAY Miter Bars and Stops will fit ANY standard (3/4” x 3/8”) T-Track miter slot that measures between 0.73" and 0.79" wide and at least 5/16" deep.
Compatible miter tracks include but not exclusive to: SawStop, Bosch 4100, Delta Unisaw, Powermatic, Rigid, Dewalt, and General 350 Tracks.
(Not compatible with table saws with 'Tabs' cast into the top of the miter slot or 5/8" miter slots i.e. Ryobi or Craftsman)
Parts
- Miter Stop
Table Saw
ZEROPLAY Miter Bars and Stops will fit ANY standard (3/4” x 3/8”) T-Track miter slot that measures between 0.73" and 0.79" wide and at least 5/16" deep.
Compatible miter tracks include but not exclusive to: SawStop, Bosch 4100, Delta Unisaw, Powermatic, Rigid, Dewalt, and General 350 Tracks.
(Not compatible with table saws with 'Tabs' cast into the top of the miter slot or 5/8" miter slots i.e. Ryobi or Craftsman)
Parts
- Miter Stop
Table Saw
ZEROPLAY Miter Bars and Stops will fit ANY standard (3/4” x 3/8”) T-Track miter slot that measures between 0.73" and 0.79" wide and at least 5/16" deep.
Compatible miter tracks include but not exclusive to: SawStop, Bosch 4100, Delta Unisaw, Powermatic, Rigid, Dewalt, and General 350 Tracks.
(Not compatible with table saws with 'Tabs' cast into the top of the miter slot or 5/8" miter slots i.e. Ryobi or Craftsman)
